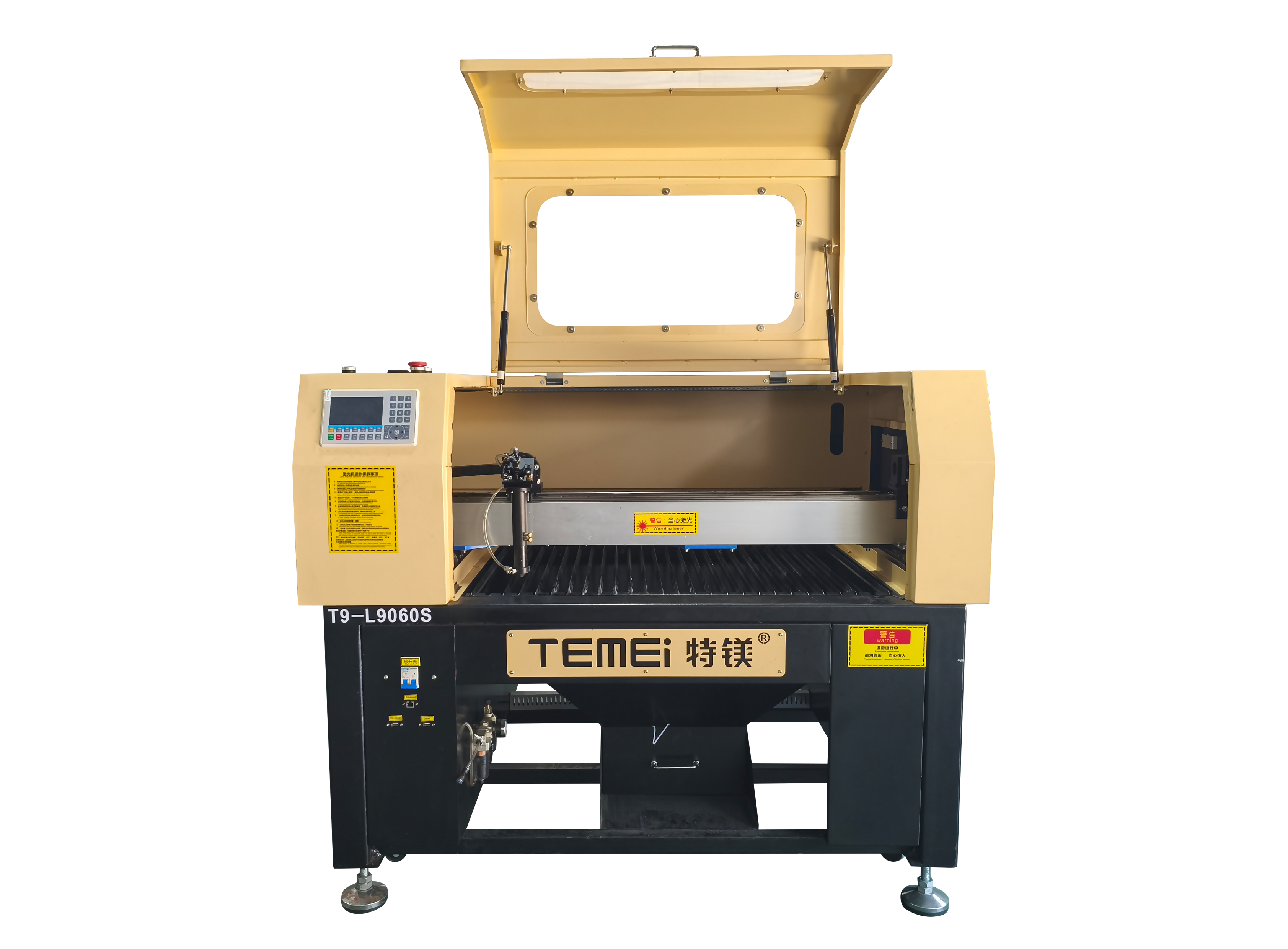

Small-format 900*600 CO2 laser cutting machine
Product Introduction
This 900mm*600mm CO2 laser engraving and cutting machine is designed for precision and versatility, capable of processing a wide range of nonmetal materials including wood, acrylic, glass, rubber, and more. Equipped with an autofocus laser head, sealed CO2 glass tube, and advanced RUIDA control system, it ensures efficient cutting speeds of up to 1200mm/s and exceptional engraving accuracy. The machine's robust build includes TAIWAN square rails, Leadshine drivers, and imported mirrors and lenses, offering reliability for industries like advertising, manufacturing, and garment production.
Applicable Materials:
Rubber, plastic, cloth, leather, woollens, crystal, organic glass, tile, jade, bamboo, wood, etc.
Applicable Industries:
Cloth, embroidery, fabric, toy, furniture, glove, bag, leather, advertising, decoration, electric products, rubber, acrylic products, middle density board and non-metal sheet precision
Why Choose Us
1. Advantages of Ball Screw Transmission
By adopting a unique helical meshing technology solution, the cutting deviation is controlled within 0.2mm, significantly improving the accuracy compared to traditional transmission methods.
This rigid connection mechanism effectively eliminates the elastic deformation problem inherent in flexible transmission, and is particularly suitable for precision processing fields with strict requirements for contour accuracy.
2. Long-term Stability
Using Mitsubishi servo drives from Japan, combined with TPI screws and PMI rails, ensures that the machine can operate stably for a long time.
3: Durable and sturdy
The 0.5mm square tubes are fully welded and undergo tempering to relieve stress, ensuring that the equipment can be used normally for 8 to 10 years without any problems.
4: Easy maintenance
No frequent maintenance is required, and there is no need to worry about the decline in accuracy due to worn-out belts.
Equipment parameters
| Name | CO2 laser cutting machine |
| Model | T9-L9060S |
| Working Size | 600mm*900mm |
| Laser Source | CO2 Laser Tube |
| Laser Power | 80W/100W/130W/150W/180W/200W |
| Light Path | Flight optical path system |
| Cooling Method | S&A CW-5200 Chiller |
| Drive System | Mitsubishi Servo Driver & Motor from Japan |
| Transmission System | TBI Ball Screw & PMI Linear Guide from Taiwan |
| Control System | Ruida RDC6442 / RDV6445 |
| CCD edge patrol cutting function | Optional |
| Positioning Accuracy | 0.02mm |
| Repet.Positioning Accuracy | 0.01mm |
| Max.Speed | 40m/min |
| Working table | Blade platform / Cellular platform (optional) |
| Red-light Positioning | Yes |
| Auxiliary Equipment | Air pump, centrifugal fans |
| Power supply | 220V,50/60Hz |
| File format | DXF, PLT, AI, DST, DSB,BMP,GIF,PEG,PCX,DWG |
| Dimensions | 1430*1300*1200mm |
| Net Weight | 350KG |
| Application Materials | Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
Exhibition and Visitation
Logistics and Packaging
To ensure the smooth operation and maximum performance of the 9060 CO2 Laser Cutting Machine, we provide comprehensive product technical support and service guarantees:
- Certified technicians will conduct on-site equipment installation and operation training, which not only ensures standard installation of the equipment but also helps operators master the correct usage methods.
- Multi-channel real-time technical support is available via phone, email, or online customer service to promptly answer questions and resolve unexpected issues that may arise during equipment operation.
- Scheduled maintenance services are offered to maintain the equipment in optimal operating condition and avoid downtime losses caused by mechanical failures.
- Users are granted access to software updates and technical documentation to ensure the equipment's functions are synchronized with the latest upgrades and its performance is continuously optimized.
- Optional extended warranty and value-added service packages are provided to add protection for users beyond the standard warranty period and eliminate usage concerns.
After the order is confirmed, the 9060 CO2 Laser Cutting Machine will be shipped within 3-5 business days. We cooperate with qualified and reliable logistics companies to deliver the equipment to the address specified by the user, and provide a logistics tracking number to facilitate users to check the transportation progress in real time.
Q: What materials can the 9060 CO2 Laser Cutting Machine cut?
A: The machine can cut a variety of materials, including common ones such as acrylic, wood, leather, fabric, and paper.
Q: What is the maximum cutting thickness of the 9060 CO2 Laser Cutting Machine?
A: The maximum cutting thickness of the 9060 CO2 Laser Cutting Machine varies by material, and it can typically cut materials with a thickness of up to 20mm.
Q: Does the 9060 CO2 Laser Cutting Machine come with design and cutting control software?
A: Yes, the machine is equipped with dedicated software, which can be used to design processing plans and accurately control cutting parameters.
Q: What is the maximum cutting speed of the 9060 CO2 Laser Cutting Machine?
A: The maximum cutting speed of the 9060 CO2 Laser Cutting Machine is affected by the material type and design complexity, with a maximum speed of up to 500mm/s.
Q: How often does the laser tube of the 9060 CO2 Laser Cutting Machine need to be replaced?
A: The service life of the laser tube of the 9060 CO2 Laser Cutting Machine depends on the frequency of use, and it usually needs to be replaced every 2,000-3,000 hours of operation.
